EM-Tec gripping stub and stub based vise holders

Order pin stub based   |   Order Hitachi M4 stub based   |   Order JEOL cylinder stub based

Introduction

Overview of the EM-Tec gripping stub and stub based vise holders

AU-12-000234 GS24 gripping stub, pin	AU-10-002240 PS4 mini pin stub vise	AU-10-002218 PS6 mini pin split vise	AU-10-002242 PS7 mini dual slot vise
AU-12-000112 PS12 pin stub vise clamp	AU-12-000334 GS24 gripping stub, M4	AU-12-000306 HS6 mini M4 stub vise	AU-12-000315 HS15 stub vise clamp, m4
AU-12-000328 HS7 mini dual slot vise, M4	AU-12-000504 JS4 mini JEOL stub vise	AU-12-000512 JS12 JEOL stub vise clamp

EM-Tec pin stub compatible gripping stub and stub based vise holders:

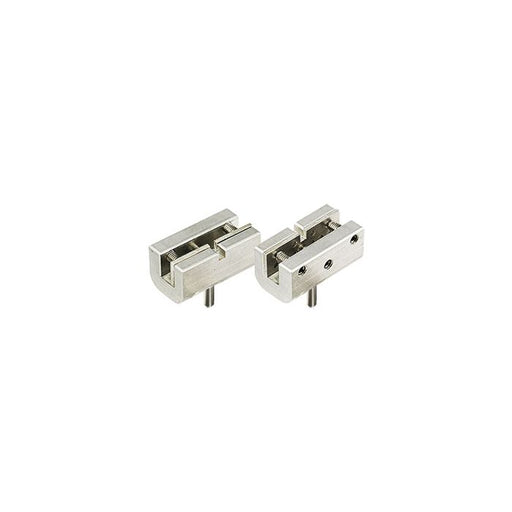

• EM-Tec GS24 gripping stub holder with clamping plate to hold samples or tissue up to 4mm thick.  Sample is held by the clamping plate which is pushed with set screws. Also useful for holding tissue for dehydration and CDP processing.  Holder size is 24x13x12mm; fits in any SEM using standard 3.2mm pin stubs. Ref: McTurk, G., Bulman, S., Ocklefors, C.C. Journal of microscopy 127,233. 1982.
• EM-Tec PS4 mini pin stub vise clamp for sample thickness from 0-4mm. The sample is held vertically with a       small set screw.  Most effective way to study cross section of thin samples. Holder size w/o pin is Ø12.7x7.2mm.
• EM-Tec PS6 mini pin stub split vise clamp for sample thickness from 0-6mm. The sample is clamped between the two min vise clamps. The split vise jaws are closed by an allen screw. Closed split vise diameter is 12.7mm; when opened it is 19x12.7mm.
• EM-Tec PS7 mini pin stub dual slot vise with two slots of one mm wide. Ideal for holding thin wafer pieces samples for cross section imaging. Samples are clamped by set screws. Holder size w/o pin is Ø15x6mm.
• EM-Tec PS12 pin stub vise clamp for sample thickness from 0-12mm. The sample is held vertically with a set screw.  Most effective way to study cross section of thin samples. Holder size w/o pin is Ø25x6mm.

EM-Tec gripping stub and stub based vise holders with M4 thread:

• EM-Tec GS24 gripping stub holder with clamping plate to hold samples or tissue up to 4mm thick.  Sample is held by the clamping plate which is pushed with set screws. Also useful for holding tissue for dehydration and CDP processing.  Holder size is 24x13x12mm; M4 threaded hole in base. Ref: McTurk, G., Bulman, S., Ocklefors, C.C. Journal of microscopy 127,233. 1982.
• EM-Tec HS6 mini M4 cylinder stub vise clamp for sample thickness from 0-6mm. The sample is held vertically with a small set screw.  Simple and cost-effective way to clamp cross section of thin samples. Holder stub size is Ø15x10mm xM4.
• EM-Tec HS15 M4 cylinder stub vise clamp for sample thickness from 0-16mm. The sample is held vertically with a set screw (multiple lengths are supplied). Cost effective and practical small vise clamp base on the stub size of Ø25x10mm xM4.
• EM-Tec HS7 mini pin stub dual slot vise with two slots of one mm wide. Ideal for holding thin wafer like samples for cross section imaging. Sample are clamped by set screws. Holder size w/o pin is Ø15x6mm.

EM-Tec JEOL stub based vise holders:

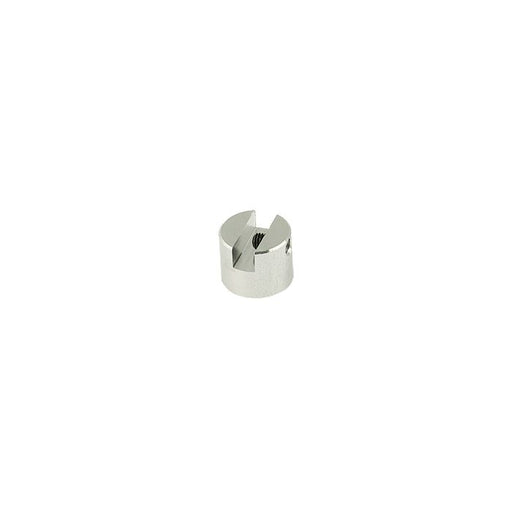

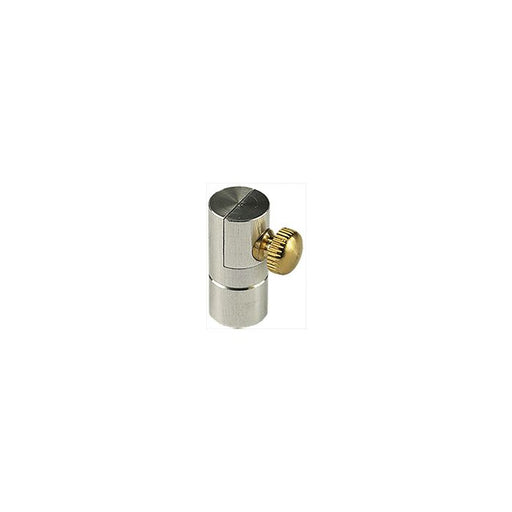

• EM-Tec  JS4 mini cylinder stub vise clamp for sample thickness from 0-4mm. The sample is held vertically with a small set screw.  Most effective way to study cross section of thin samples. Holder stub size is Ø12.2x10mm.

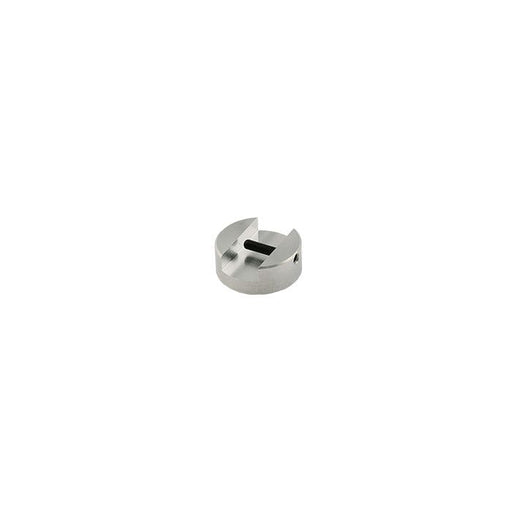

• EM-Tec JS12 cylinder stub vise clamp for sample thickness from 0-12mm. The sample is held vertically with a set screw (multiple lengths are supplied). Cost effective and practical small vise clamp based on the stub size of Ø25x10mm.

Capacity and dimensions of the EM-Tec gripping stub and stub based vise holders

Ordering Information for EM-Tec gripping stub and stub based vise holders with standard 3.2mm pin
