Value-Tec TEM grids
Value-Tec TEM support grids
Introduction
The Value-Tec electron microscopy support grids are quality TEM support grids at low prices intended for educational, non-critical, general and high use applications. The Value-Tec TEM grids are manufactured with the same high production standards as the EM-Tec TEM support grids. However, instead of individual inspection, they are sample inspected per production batch which results in lower costs. Available materials are Cu and Ni only in the range of 50 to 400 square mesh. All Value-Tec TEM grids have a centre mark. Packaged as 120 grids per vial which is 20% more than the standard TEM grid packaging.
Specifications of the Value-Tec TEM support grids
| Mesh |
Pitch µm |
Hole µm |
Bar µm |
Transmission % |
Rim width µm |
Thickness µm |
Diameter mm |
|---|---|---|---|---|---|---|---|
|
50 |
508 |
425 |
83 |
70 |
375 |
25 |
3.05 |
|
100 |
254 |
204 |
50 |
65 |
375 |
25 |
3.05 |
|
150 |
169 |
125 |
44 |
55 |
375 |
25 |
3.05 |
|
200 |
127 |
90 |
37 |
50 |
375 |
25 |
3.05 |
|
300 |
85 |
54 |
31 |
40 |
375 |
25 |
3.05 |
|
400 |
64 |
38 |
26 |
35 |
375 |
25 |
3.05 |

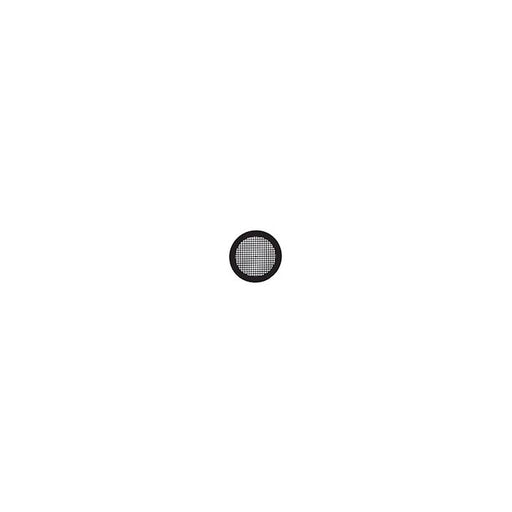

Value-Tec TEM support grids 200 Mesh Copper and Nickel, 90 μm hole, 37 μm bar
SKU: AU-21-1MV020
Original price
$29.23
-
Original price
$37.23
Original price
$29.23
-
$37.23
$29.23
-
$37.23
Current price
$29.23

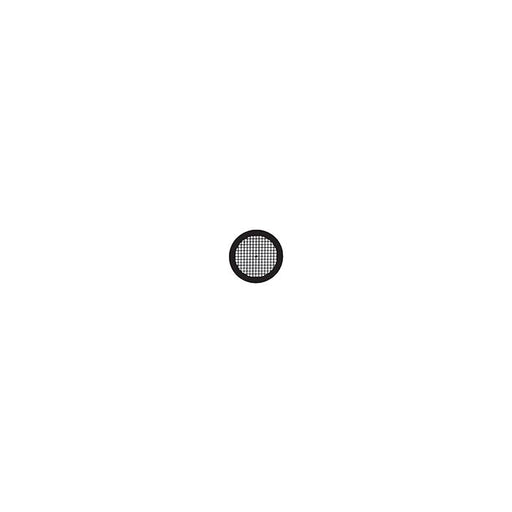

Value-Tec TEM support grids 150 Mesh Copper and Nickel, 125 μm hole, 44 μm bar
SKU: AU-21-1MV015
Original price
$29.23
-
Original price
$37.23
Original price
$29.23
-
$37.23
$29.23
-
$37.23
Current price
$29.23

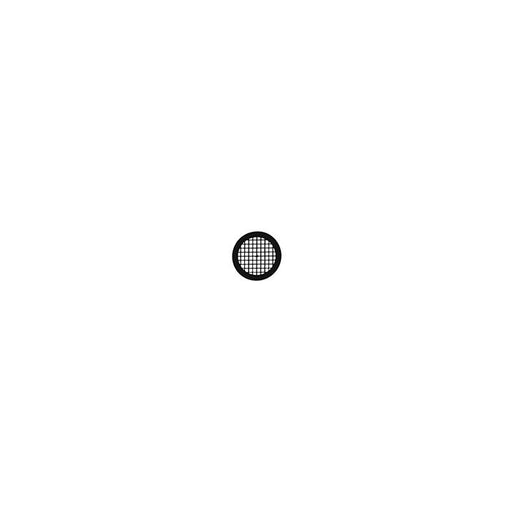

Value-Tec TEM support grids 100 Mesh Copper and Nickel, 204 μm hole, 50 μm bar
SKU: AU-21-1MV010
Original price
$26.56
-
Original price
$34.56
Original price
$26.56
-
$34.56
$26.56
-
$34.56
Current price
$26.56

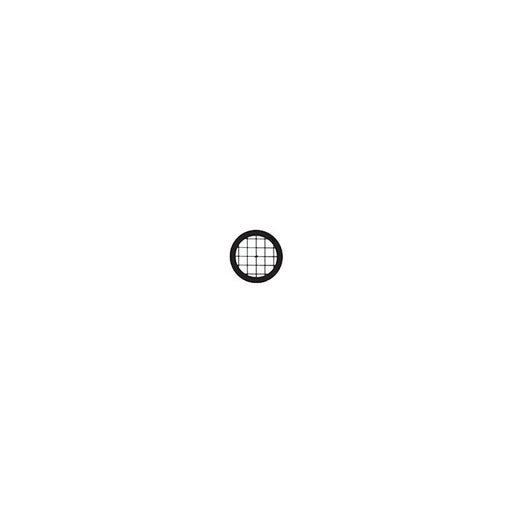

Value-Tec TEM support grids 50 Mesh Copper and Nickel, 425 μm hole, 83 μm bar
SKU: AU-21-1MV005
Original price
$26.56
-
Original price
$34.24
Original price
$26.56
-
$34.24
$26.56
-
$34.24
Current price
$26.56
