Metallographic mount holders
EM-Tec metallographic mount holders
Order EM-Tec metallographic mount holders (pin) | Order EM-Tec metallographic mount holders (M4)
Introduction
|
EM-Tec metallographic mount holder |
The EM-Tec metallographic mount holders are designed to hold metallographic, petrographic and ceramographic mounts or embeddings. They are equally useful holding round samples with size similar to the mounts or for holding larger cylindrical specimen stubs. Available for all standard metallurgical mounts from 25 to 50mm diameter (1” to 2”). The samples are secured with an M3 set screw; an allen key is included with the holder. They are all made from vacuum grade aluminium and have undergone a final cleaning step which results in a satin surface finish. Available with:
- standard pin to fit on SEM which use the standard pin; FEI, Philips, Tescan, Phenom, Aspex, RJLee, AmRay, Cambridge Instruments, Leica, CamScan, Aspex, ETEC and Novascan SEMs.
- M4 threaded hole; compatible with Hitachi SEMs, FESEMs and table top SEMs and with the EM-Tec versatile SEM stage adapters
Capacity and dimensions for the EM-Tec metallographic mount holders:
|
Product # |
Type |
Mount sizes |
Dimensions w/o pin |
Securing methode |
SEM stage comp. |
|
AU-12-000226 |
M26 |
25mm / 1” |
Ø34x12.5mm |
Set screw |
Standard 3.2mm pin |
|
AU-12-000326 |
M26 |
25mm / 1” |
Ø34x12.5mm |
Set screw |
M4 thread |
|
AU-12-000232 |
M32 |
30/mm / 1-1/4” |
Ø40x12.5mm |
Set screw |
Standard 3.2mm pin |
|
AU-12-000332 |
M32 |
30mm / 1-1/4” |
Ø40x12.5mm |
Set screw |
M4 thread |
|
AU-12-000240 |
M40 |
40mm / 1-1/2” |
Ø48x12.5mm |
Set screw |
Standard 3.2mm pin |
|
AU-12-000340 |
M40 |
40mm / 1-1/2” |
Ø48x12.5mm |
Set screw |
M4 thread |
|
AU-12-000251 |
M51 |
50mm / 2” |
Ø59x12.5mm |
Set screw |
Standard 3.2mm pin |
|
AU-12-000351 |
M51 |
50mm / 2” |
Ø59x12.5mm |
Set screw |
M4 thread |
Ordering Information for EM-Tec metallographic mount holders for SEMs using pin stubs; FEI, Philips,Zeiss, LEO, Tescan, Phenom, Aspex, RJLee, AmRay, Cambridge Instruments, Leica, CamScan, Aspex, ETEC and Novascan SEMs
EM-Tec R22-1.5 top reference holder for 4x Ø 1-1/2 inch metallographic mounts, pin. Includes 4 positions for calibration stubs.
SKU: AU-12-003259-1
Original price
$1,397.49
-
Original price
$1,397.49
Original price
$1,397.49
$1,397.49
-
$1,397.49
Current price
$1,397.49

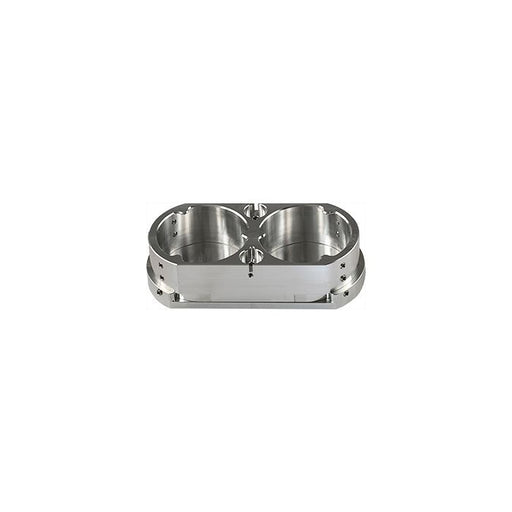

EM-Tec R5 top reference holder for 2x Ø50mm/2 inch metallographic mounts, pin stub. Includes 2 positions for calibration stubs.
SKU: AU-12-003256-1
Original price
$924.81
-
Original price
$924.81
Original price
$924.81
$924.81
-
$924.81
Current price
$924.81
EM-Tec R2-1.5 top reference holder for 2x Ø1-1/2 inch metallographic mounts, M4. Includes 2 positions for calibration stubs.
SKU: AU-12-003358-1
Original price
$737.98
-
Original price
$737.98
Original price
$737.98
$737.98
-
$737.98
Current price
$737.98
EM-Tec R2-1.5 top reference holder for 2x Ø1-1/2 inch metallographic mounts, pin stub. Includes 2 positions for calibration stubs.
SKU: AU-12-003258-1
Original price
$743.58
-
Original price
$743.58
Original price
$743.58
$743.58
-
$743.58
Current price
$743.58
EM-Tec R22 top reference holder for 4x Ø40mm metallographic mounts, pin. Includes 4 positions for calibration stubs.
SKU: AU-12-002249-1
Original price
$1,397.49
-
Original price
$1,397.49
Original price
$1,397.49
$1,397.49
-
$1,397.49
Current price
$1,397.49

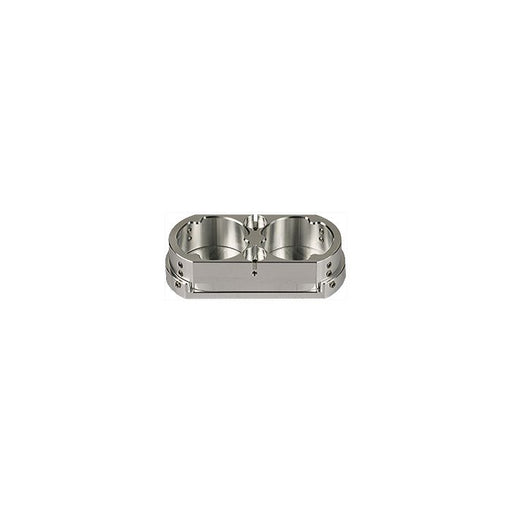

EM-Tec R2 top reference holder for 2x Ø40mm metallographic mounts, M4. Includes 2 positions for calibration stubs.
SKU: AU-12-000352-1
Original price
$737.98
-
Original price
$737.98
Original price
$737.98
$737.98
-
$737.98
Current price
$737.98
EM-Tec R2 top reference holder for 2x Ø40mm metallographic mounts, Pin. Includes 2 positions for calibration stubs.
SKU: AU-12-000252-1
Original price
$743.58
-
Original price
$743.58
Original price
$743.58
$743.58
-
$743.58
Current price
$743.58

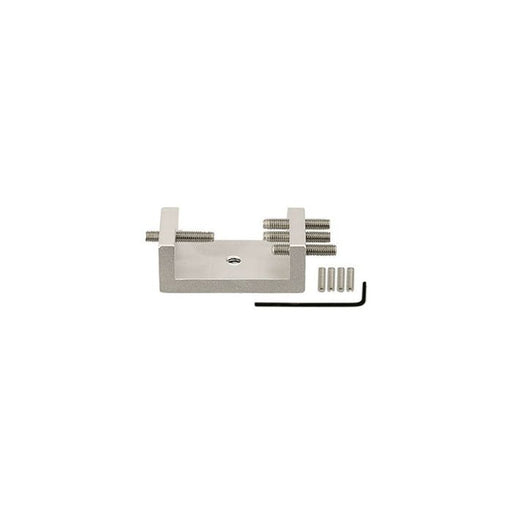

EM-Tec B38 bulk sample holder for up 38mm, aluminium, M4
SKU: AU-12-000327-1
Original price
$106.49
-
Original price
$106.49
Original price
$106.49
$106.49
-
$106.49
Current price
$106.49
EM-Tec M51 metallographic mount holder for ����50mm / ����2inch mounts, M4
SKU: AU-12-000351-1
Original price
$58.85
-
Original price
$58.85
Original price
$58.85
$58.85
-
$58.85
Current price
$58.85

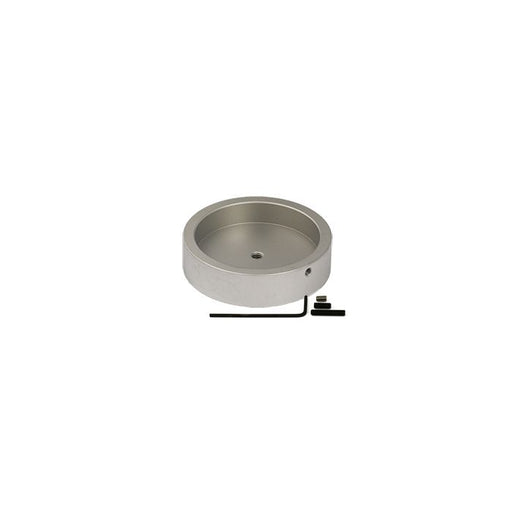

EM-Tec M40 metallographic mount holder for ����40mm / ����1-1/2inch mounts, M4
SKU: AU-12-000340-1
Original price
$56.98
-
Original price
$56.98
Original price
$56.98
$56.98
-
$56.98
Current price
$56.98

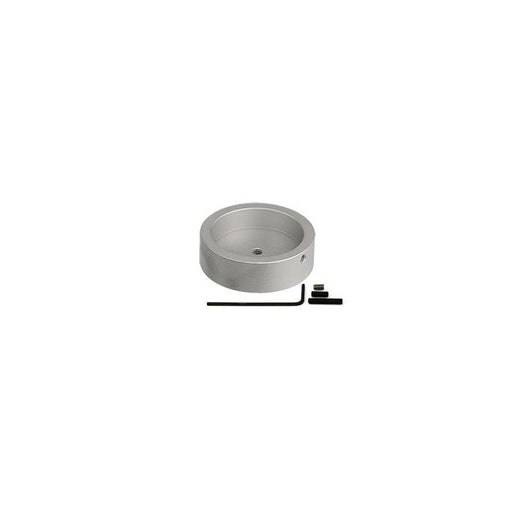

EM-Tec M32 metallographic mount holder for Ø30mm / Ø32mm / Ø1-1/4inch mounts, M4
SKU: AU-12-000332-1
Original price
$47.64
-
Original price
$47.64
Original price
$47.64
$47.64
-
$47.64
Current price
$47.64
EM-Tec M26 metallographic mount holder for ����25mm / ����1inch mounts, M4
SKU: AU-12-000326-1
Original price
$47.64
-
Original price
$47.64
Original price
$47.64
$47.64
-
$47.64
Current price
$47.64

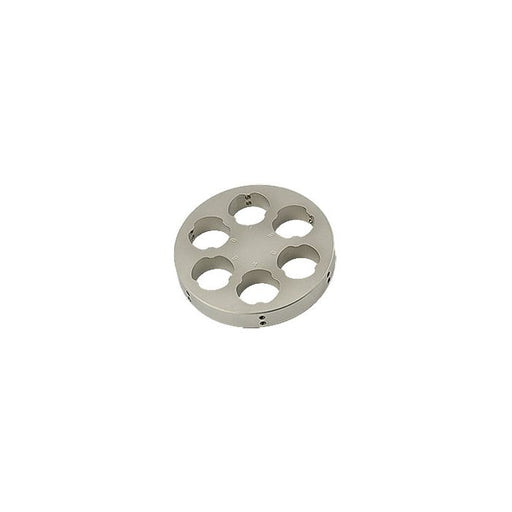

EM-Tec R6 top reference holder for 6x Ø25mm/1 inch metallographic mounts, pin
SKU: AU-12-000259-1
Original price
$556.75
-
Original price
$556.75
Original price
$556.75
$556.75
-
$556.75
Current price
$556.75

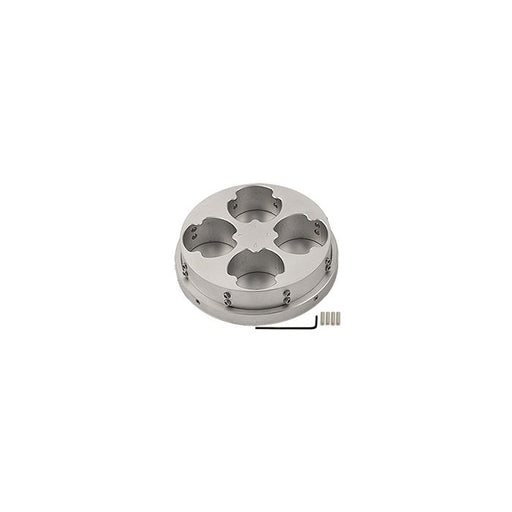

EM-Tec R4 top reference holder for 4x Ø30mm/1-1/4inch metallographic mounts, pin
SKU: AU-12-000255-1
Original price
$724.90
-
Original price
$724.90
Original price
$724.90
$724.90
-
$724.90
Current price
$724.90

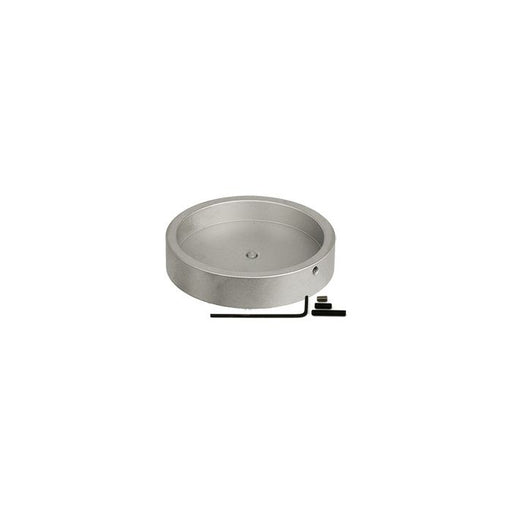

EM-Tec M51 metallographic mount holder for ����50mm / ����2inch mounts, pin
SKU: AU-12-000251-1
Original price
$60.72
-
Original price
$60.72
Original price
$60.72
$60.72
-
$60.72
Current price
$60.72
EM-Tec M40 metallographic mount holder for ����40mm / ����1-1/2inch mounts, pin
SKU: AU-12-000240-1
Original price
$58.85
-
Original price
$58.85
Original price
$58.85
$58.85
-
$58.85
Current price
$58.85

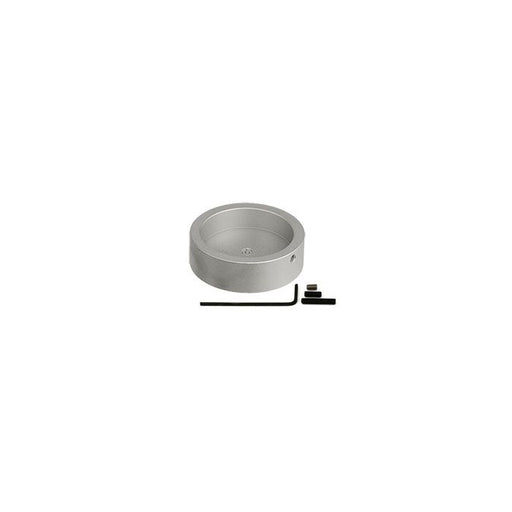

EM-Tec M32 metallographic mount holder for ����30mm / ����32mm / ����1-1/4inch mounts, pin
SKU: AU-12-000232-1
Original price
$49.51
-
Original price
$49.51
Original price
$49.51
$49.51
-
$49.51
Current price
$49.51

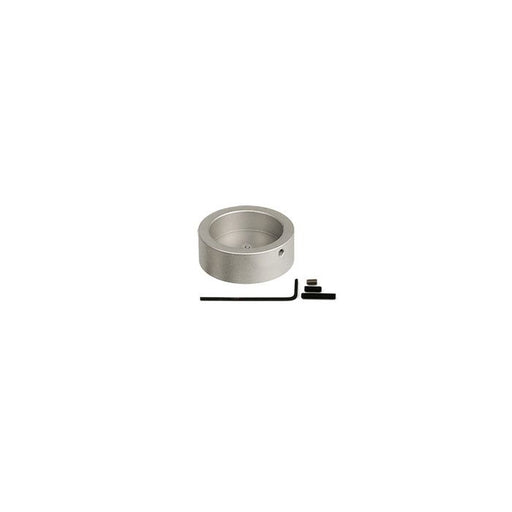

EM-Tec M26 metallographic mount holder for ����25mm / ����1inch mounts, pin
SKU: AU-12-000226-1
Original price
$49.51
-
Original price
$49.51
Original price
$49.51
$49.51
-
$49.51
Current price
$49.51
