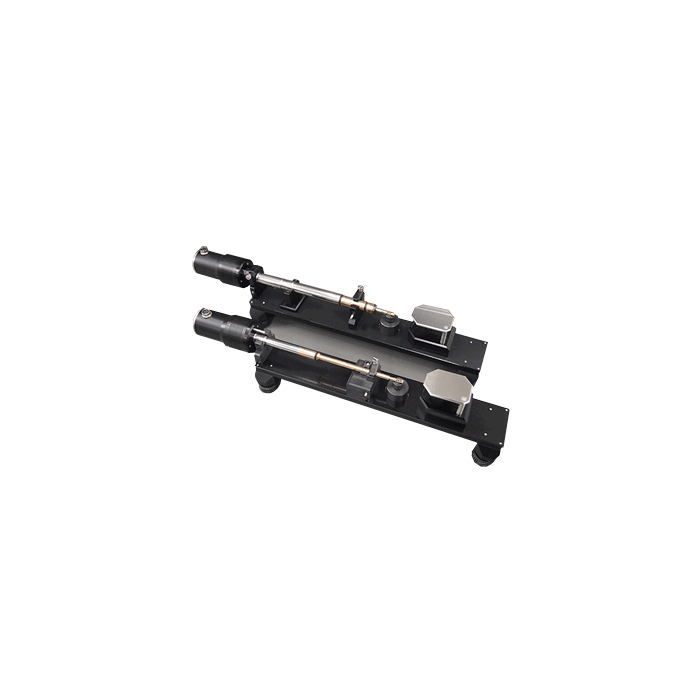

In-situ Nano Step Tensile Cartridge Enabled TEM Holder

In-situ Nano Step Tensile Cartridge Enabled TEM Holder

SKU AU-MBTH-006
$0.00 - $0.00
$0.00
$0.00 - $0.00
$0.00

In-situ Nano Order Tensile Holder

vacuum-transfer-1st02_1

Nano-Order Tensile : min.step 1nm
Prepare 2 type holder of Polymer and Material model
Cartridge structure: Easy link to Microtome and FIB

Polymer and material Nano order Tensil data Collection

Cu-6Sn-HR

Cu-6Sn HR 5nm　Tensile

Prof. M. Murayama (Virginia Tech)

Microscopy, 67, 296-300 (2018).
Prof. Jinnai Tohoku University



As shown in the video above, it is possible to perform a tensile test by dynamic observation.

Cartridge Structure

Polymer Model
Co-developer Prof.Hiroshi Jinnai Tohoku University
Sample Preparation Method Example
Placing the cut section of the microtome on the cartridge.

Material Model

Co-developer Prof.Kazuhisa Sato/Prof.Satoshi Hata


Standard Design
Thin Slit Design for FIB





Set the sample on the cartridge in various ways. The cartridge design can be changed depending on the sample set method.

Then, the cartridge on which the sample is placed set on the TEM holder, and the cartridge is tensile by deforming.



TEM holder specification

Material Model
Tensil resolution: 1nm/step 3nm/dec
Tensile Distance: 200μm
TIlt Angle: Thermo Fisher ±65°
JEOLHR PP ±60°/ UHR PP ±10°
Cartridge Model: Prepare FIB and Bulk sample
Soft Material Model
Tensil resolution: 1nm/step 3nm/dec
Tensile Distance: JEOL Model 800%
Thermo Fisher 200%
TIlt Angle: JEOLHR PP ±20°/ UHR PP ±10°
Thermo Fisher ±20°
Cyclic Straining Mode: JEOL Avilable
Thermo Fisher Not Function
Cartridge Model: Prepare Microtome and FIB
