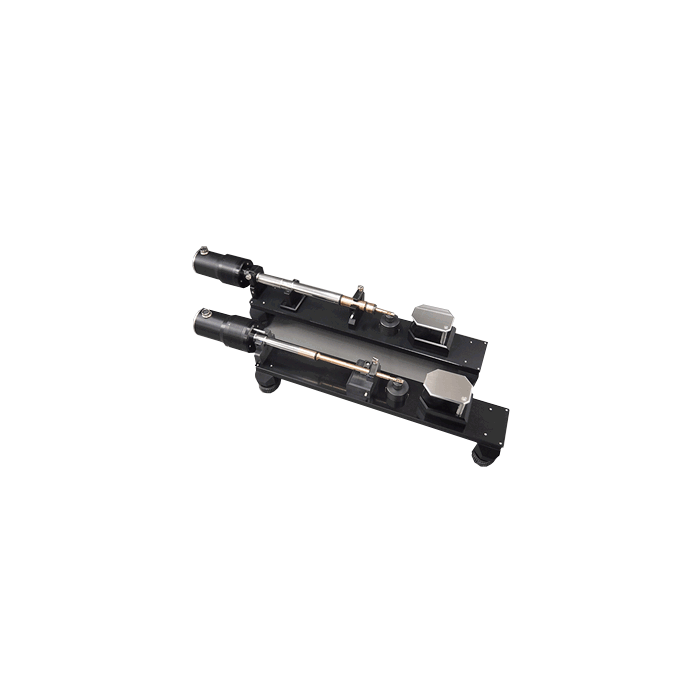

In-situ Nano Step Tensile Cartridge Enabled TEM Holder
SKU AU-MBTH-006
In-situ Nano Order Tensile Holder
Nano-Order Tensile : min.step 1nm
Prepare 2 type holder of Polymer and Material model
Cartridge structure: Easy link to Microtome and FIB
Polymer and material Nano order Tensil data Collection
Cu-6Sn HR 5nmгЂЂTensile
Prof. M. Murayama (Virginia Tech)
Microscopy, 67, 296-300 (2018).
Prof. Jinnai Tohoku University
В
As shown in the video above, it is possible to perform a tensile test by dynamic observation.
Cartridge Structure
Polymer Model
Co-developer Prof.Hiroshi Jinnai Tohoku University
Co-developer Prof.Hiroshi Jinnai Tohoku University
Sample Preparation Method Example
Placing the cut section of the microtome on the cartridge.
Placing the cut section of the microtome on the cartridge.
Material Model
Co-developer Prof.Kazuhisa Sato/Prof.Satoshi Hata
В
Standard Design
Thin Slit Design for FIB
В
В
Set the sample on the cartridge in various ways. The cartridge design can be changed depending on the sample set method.
Then, the cartridge on which the sample is placed set on the TEM holder, and the cartridge is tensile by deforming.
В
TEM holder specification
| Material Model | |
|---|---|
| Tensil resolution: | 1nm/step 3nm/dec |
| Tensile Distance: | 200Ојm |
| TIlt Angle: | Thermo Fisher В±65° JEOLHR PP В±60°/ UHR PP В±10° |
| Cartridge Model: | Prepare FIB and Bulk sample |
| Soft Material Model | |
| Tensil resolution: | 1nm/step 3nm/dec |
| Tensile Distance: | JEOL Model 800% Thermo Fisher 200% |
| TIlt Angle: | JEOLHR PP В±20°/ UHR PP В±10° Thermo Fisher В±20° |
| Cyclic Straining Mode: | JEOL Avilable Thermo Fisher Not Function |
| Cartridge Model: | Prepare Microtome and FIB |
